Yanmar 4LHA-HTP 160hp Inboard Diesel Engine USED
Originally installed in a large sailing yacht with circa 3000hrs running time, we took this engine as a PX back in 2022 and then supplied it to a workboat operator as a spare for one of their RIBs. They have now disposed of their Yanmar powered RIBs and supplied the engine back to us having never needed to use it.
$6,210.00
Yanmar 4LHA-HTP 160hp Inboard Diesel Engine USED

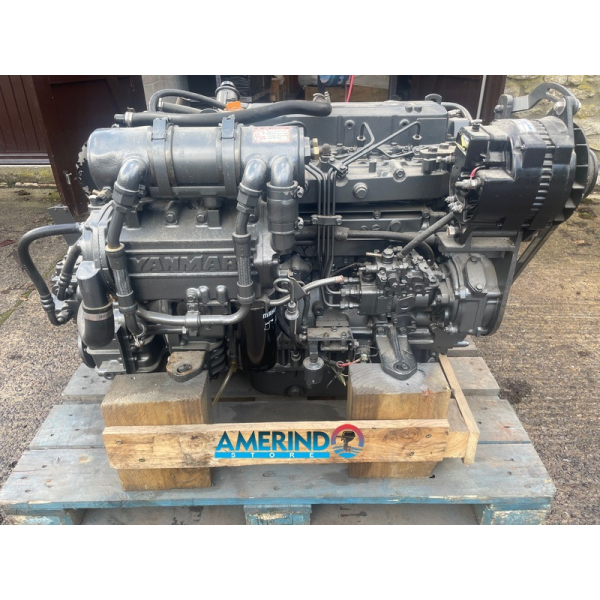

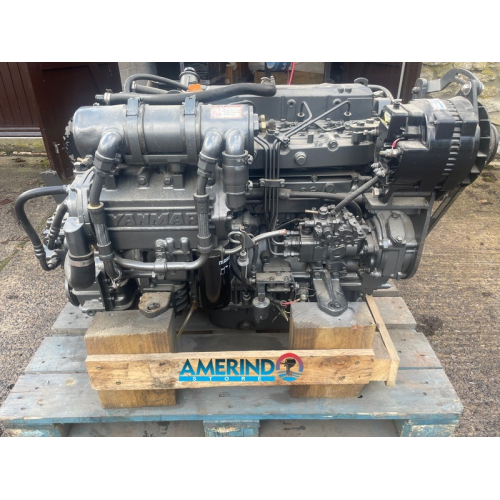

Yanmar 4LHA-HTP 160hp Four Cylinder Turbo Aftercooled Heat Exchanger Cooled Marine Diesel Engine With KMH40 2.5:1 Reduction Gearbox, Control Panel & Wiring Harness.
Engine is 12V but also currently fitted with a 110A 24V secondary alternator (can be removed if not required).
Originally installed in a large sailing yacht with circa 3000hrs running time, we took this engine as a PX back in 2022 and then supplied it to a workboat operator as a spare for one of their RIBs. They have now disposed of their Yanmar powered RIBs and supplied the engine back to us having never needed to use it.
Specifications :
Rated output
118 kW / 160 mhp
Rated Speed
3300 rpm
Displacement
3.455 L / 211 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
100 mm x 110 mm / 3.94 in x 4.25 in
Combustion system
Direct Injection, VE Rotary Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 80A
Dry weight without gear
342 kg / 754 lbs
Dimensions
1131 mm x 719 mm x 811 mm
Controls
Mechanical
Certifications
RCD 1 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions include KMH50A gearbox and L-type elbow
(Dimensions may vary with other gears/elbow)
INCLUDED:
New YANMAR 4LHA-HTP 160HP engine
Factory-installed gearbox (KMH or ZF63A)
Turbocharger system
Freshwater heat exchanger cooling system
Starter motor and 125A alternator
Fuel pre-filter with water separator
Flexible engine mounting kit
Exhaust mixing elbow (L-Type)
Belt safety cover
5-meter wiring harness with connectors
Freshwater expansion tank
Installation and operation manuals
Optional Accessories
Enhance your setup with optional upgrades designed for convenience, performance, and system monitoring:
High-Riser Exhaust Mixing Elbow – For elevated exhaust configurations
VC10 Vessel Control System
NMEA2000 Monitoring System – Seamless integration with your onboard electronics
Extended Wiring Harnesses – 3m, 5m, or 10m for flexible installs
Hot Water Kit with Control Cocks
Secondary Alternator – 12V or 24V
Onboard Spare Parts Kit
Propeller and Shaft Kits
Also you can check product : Yanmar 4JH4-TE 75HP Inboard Diesel Engine - Used
Yanmar 4LHA-HTP 160hp Four Cylinder Turbo Aftercooled Heat Exchanger Cooled Marine Diesel Engine With KMH40 2.5:1 Reduction Gearbox, Control Panel & Wiring Harness.
Engine is 12V but also currently fitted with a 110A 24V secondary alternator (can be removed if not required).
Originally installed in a large sailing yacht with circa 3000hrs running time, we took this engine as a PX back in 2022 and then supplied it to a workboat operator as a spare for one of their RIBs. They have now disposed of their Yanmar powered RIBs and supplied the engine back to us having never needed to use it.
Specifications :
Rated output
118 kW / 160 mhp
Rated Speed
3300 rpm
Displacement
3.455 L / 211 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
100 mm x 110 mm / 3.94 in x 4.25 in
Combustion system
Direct Injection, VE Rotary Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 80A
Dry weight without gear
342 kg / 754 lbs
Dimensions
1131 mm x 719 mm x 811 mm
Controls
Mechanical
Certifications
RCD 1 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions include KMH50A gearbox and L-type elbow
(Dimensions may vary with other gears/elbow)
INCLUDED:
New YANMAR 4LHA-HTP 160HP engine
Factory-installed gearbox (KMH or ZF63A)
Turbocharger system
Freshwater heat exchanger cooling system
Starter motor and 125A alternator
Fuel pre-filter with water separator
Flexible engine mounting kit
Exhaust mixing elbow (L-Type)
Belt safety cover
5-meter wiring harness with connectors
Freshwater expansion tank
Installation and operation manuals
Optional Accessories
Enhance your setup with optional upgrades designed for convenience, performance, and system monitoring:
High-Riser Exhaust Mixing Elbow – For elevated exhaust configurations
VC10 Vessel Control System
NMEA2000 Monitoring System – Seamless integration with your onboard electronics
Extended Wiring Harnesses – 3m, 5m, or 10m for flexible installs
Hot Water Kit with Control Cocks
Secondary Alternator – 12V or 24V
Onboard Spare Parts Kit
Propeller and Shaft Kits
Also you can check product : Yanmar 4JH4-TE 75HP Inboard Diesel Engine - Used
- Availability: 17 In Stock
- Model: 4LHA-HTP
-
