B&G

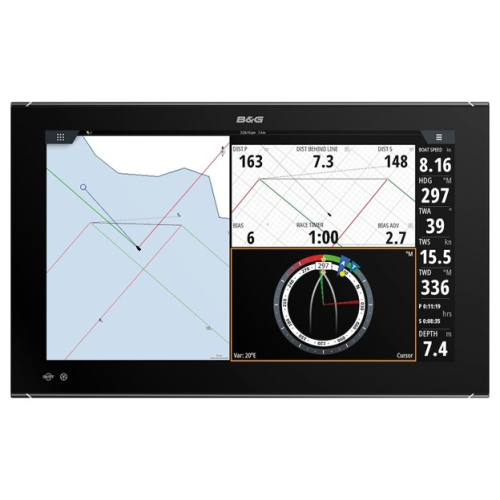

B&G Zeus SRX 22" Chartplotter MFD With Worldwide Basemap NEW

A new benchmark in marine luxury, Zeus SRX pairs a striking glass-to-edge display with a powerful 8-core processor and a fully redesigned OS for effortless control across every onboard system.

Features:

2 sizes available: 16”/22”
Powerful 8 Core processor delivering fast boot, instantaneous chart redraw, and fast page transitions
Full-HD, Sunlight Viewable display
Edge-glass aesthetic, optimized for premium teak isle
Patented Rear-mount for a clean, flush, trouble-free fit
Rugged waterproof design, for the harshest marine environment
Subtle branding, out of sight lines for a cleaner, more sophisticated look
More Ethernet Ports, making integration a breeze
Wide-ranging compatibility now full-screen CZONE App
High-definition Video In & Out with built-in Audio Splitter, so you can keep an eye on the game
Unmatched Simplicity, Finally Scaled

Now in the format that larger boats have been waiting for, NEON® OS delivers the most intuitive and modern OS on the market today.

Providing a familiar experience to a mobile device, users instantly feel at ease and, with intuitive flow and setup wizards, can have confidence that they are ready for their next adventure.

Symbolic of the leap into the future from its predecessor, the modern UI is refined yet powerful – a focus on usability ensures that the most common features and functions are at your fingertips and that no manuals are necessary.

Speed isn’t just a number, it’s a feeling, and from the moment you power the unit, you know the difference – ultra-fast boot, instantaneous chart redraw, and seamless page transitions elevate your on-water experience.

Seamless System Integration

Zeus SRX is the control center of your smart vessel, connecting and controlling everything from engines and radar to lighting, AV, and entertainment. Take full control with a system built for total vessel integration.

Wide Range Compatibility

Whether you are cruising, racing, or anything in between, B & G makes it easy to build the yacht of your dreams by being designed to support large multi-helm systems with up to 10 NEON™ Displays.

Control at your Fingertips

Flexible integration tools for OEM customization, including branded interfaces and custom graphics.

External controller support with the updated OP55 Remote Control for greater flexibility and a custom key to suit your style.

Plug-and-play connectivity with a variety of 3rd party products, including RGB Lighting, Audio control, HTML5 integration, and more.

Your AV Center

Providing total awareness, Zeus® SRX features 4-way IP video support, high-definition video with limited sharing across Ethernet to keep you connected and aware.

Never miss a moment by connecting a streaming device to view live sports or keep the kids entertained with their favorite TV show or movie. The optional audio out cable allows you to connect to your vessel's audio system with ease.

INCLUDED :

B & G Zeus SRX 22" MFD
Magnetic Sun Cover
Rear mount kit and dash gasket
Power Cable
Documentation Pack

B&G Zeus 3S Glass Helm 19" System Pack NEW

B&G Zeus Zeus 3S Glass Helm is the ultimate sailing navigation system from B&G. The new “S” model is now faster than before, with the new iMX 8 high-performance processor delivering 2x the previous model’s response times. With full High Definition on all screen sizes, it gives you stunning clarity and an intuitive touchscreen. Included in the system pack is a ZC2 remote keypad control, which gives you total control of your on-board electronics, along with a GPS Antenna and Chart Card reader.

Supreme Performance
The new Zeus 3S Glass Helm display has twice the previous version’s performance, delivering category leading response times for incredibly smooth transitions. It gives you instant access to the sailing and system information you need, when you need it, all thanks to the new iMX 8 integrated six-core processor.

Unbeatable sailing performance
Zeus 3S Glass Helm delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen visible, even if you’re wearing polarised sunglasses. Experience stunning clarity with full HD resolution, and the option to combine up to six panels in a split-screen layout. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.

Fully Connected
Built-in wireless connectivity links Zeus3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot and much more.

Features
The Fastest / Most Responsive B&G System yet
Large Wide Format Displays (16”/19”/24)” – all in Full HD 1920x1080
Best in class visibility from all angles with and without polarized glasses
Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
6-Way display panel split
Built in Wi-Fi
HDMI and Video Inputs
Connect with smartphones, tablets, and internet hotspots
Kit includes ZC2 keypad, GPS antenna, and chart card reader

Specifications:

Display Resolution
1920x1080

Screen Brightness
1200 nits

Waterproof rating
IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof

Storage Temperature Range
-20°C to 60°C (4°F to 140°F)

SD Card Storage
1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Supply Voltage
10 - 32 V DC

Operating Temperature Range
-15°C to 55°C (5° F to 131° F)

Display Size
24 inches

Warranty Period
2 Years

Video
2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)

Ethernet Ports
3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)

Weight
3.9 kg (8.6 lbs.)

Power Consumption max
40 W - 4 W

Dimensions
625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27“) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37“)

Compass Safe
50 cm (20")

Recommended Fuse Rating
6 A @ 12 V DC

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Viewing Angles
80° top/bottom, 80° left/right

INCLUDED :

MI10 Dual Micro-SD Card Reader
B&G ZC2 remote
LABEL ZEUS3S-19 GH SYSTEM PACK
ZG100 GPS Antenna with Compass

Also you can check product : B&G Zeus 3S Glass Helm 24" System Pack NEW

B&G Zeus 3S Glass Helm 16" System Pack NEW


B&G Zeus Zeus 3S Glass Helm is the ultimate sailing navigation system from B&G. The new “S” model is now faster than before, with the new iMX 8 high-performance processor delivering 2x the previous model’s response times. With full High Definition on all screen sizes, it gives you stunning clarity and an intuitive touchscreen. Included in the system pack is a ZC2 remote keypad control, which gives you total control of your on-board electronics, along with a GPS Antenna and Chart Card reader.

Supreme Performance
The new Zeus 3S Glass Helm display has twice the previous version’s performance, delivering category leading response times for incredibly smooth transitions. It gives you instant access to the sailing and system information you need, when you need it, all thanks to the new iMX 8 integrated six-core processor.

Unbeatable sailing performance
Zeus 3S Glass Helm delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen visible, even if you’re wearing polarised sunglasses. Experience stunning clarity with full HD resolution, and the option to combine up to six panels in a split-screen layout. Navigate charts and use your sailing features such as RacePanel and SailSteer, whilst also viewing connected systems such as autopilot, radar and sonar, with a single touch.

Fully Connected
Built-in wireless connectivity links Zeus3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, autopilot and much more.

Features
The Fastest / Most Responsive B&G System yet
Large Wide Format Displays (16”/19”/24)” – all in Full HD 1920x1080
Best in class visibility from all angles with and without polarized glasses
Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
6-Way display panel split
Built in Wi-Fi
HDMI and Video Inputs
Connect with smartphones, tablets, and internet hotspots
Kit includes ZC2 keypad, GPS antenna, and chart card reader

Specifications:

Display Resolution
1920x1080

Screen Brightness
1200 nits

Waterproof rating
IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof

Storage Temperature Range
-20°C to 60°C (4°F to 140°F)

SD Card Storage
1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Supply Voltage
10 - 32 V DC

Operating Temperature Range
-15°C to 55°C (5° F to 131° F)

Display Size
24 inches

Warranty Period
2 Years

Video
2x composite video (BNC), 1x high definition video (1080p, HDCP 1.4, HDMI-A), 1x high definition video output (1080p, no HDCP, HDMI-A)

Ethernet Ports
3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001)

Weight
3.9 kg (8.6 lbs.)

Power Consumption max
40 W - 4 W

Dimensions
625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27“) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37“)

Compass Safe
50 cm (20")

Recommended Fuse Rating
6 A @ 12 V DC

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Viewing Angles
80° top/bottom, 80° left/right

INCLUDED :

MI10 Dual Micro-SD Card Reader
B&G ZC2 remote
ZG100 GPS Antenna with Compass
Zeus³S Glass Helm 16" Display Only
LABEL ZEUS3S-16 GH SYSTEM PACK
ZG100 GPS Antenna with Compass

Also you can check product : B&G Zeus 3S Glass Helm 19" System Pack NEW

B&G Zeus 3S 16 Chartplotter with C-MAP cartography NEW

The Zeus 3S series are the complete navigation solution for blue water cruisers and regatta racers. With superfast processors you can display up to 6 different information panels simultaneously, on the ultra-bright SolarMax IPS all- weather touchscreen, which is combined with a rotary dial and keypad for ultimate control in all conditions.

These easy to use chartplotters include all of B&G’s unique and proven sailing features such as SailSteer, Laylines, and RacePanel and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.

Exceptional Visibility
The SolarMAX IPS screen ensures perfect visibility in all conditions. Zeus 3S’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.

Super-fast processor for immediate response
Enjoy exceptional situational awareness thanks to Zeus 3S’s high-performance processor. There’s plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance – giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.

Dedicated Sailing Features for Cruising and Racing

SailSteer
See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Laylines
Let Zeus 3S do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

SailingTime
Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

RacePanel
Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Seamless integration with your instruments
Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus 3S can also take full control of on-board systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.

Integrated keypad for complete control
Zeus 3S has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.

Easy to expand your network
Just add power to enjoy Zeus 3S as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.

Autopilot control
Zeus 3S sits at the heart of your boat – and you can take command of commissioning and controlling your B&G autopilot from your Zeus 3S’s touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.
chart-forwardscan.

ForwardScan
See what lies ahead under the water by adding a ForwardScan transducer. Benefit from a real-time two-dimensional view of the seabed in front of your boat. Navigate into shallow anchorages and poorly charted areas with ease and know what lies ahead with confidence.
halo24-bg-02-see-near-and-far.

Radar
Negotiate busy shipping lanes, see through darkness and poor visibility and track weather cells with B&G Halo Radar on your Zeus 3S.

SonicHub
Add a SonicHub to take control of your onboard entertainment from your Zeus 3S display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your Zeus 3S display.

Mapping options
Zeus 3S chartplotters support a wide range of leading cartography, from C-MAP and Navionics. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.

Looking for a 7" display?
The Zeus 3S range comprises 9, 12 and 16" displays, but the Zeus³ 7 model from our previous Zeus³ range is still available and complements the larger screen sizes of the Zeus 3S range with a smaller display for yachts with limited installation space.

Features
The fastest / most responsive sailing chartplotter and navigation display yet
SolarMAX IPS Screens Best in class visibility from all angles with and without polarised glasses
Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control
Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime
Up to 6-Way information panel split on the display
Built in Wi-Fi
Connect with smartphones, tablets, and internet hotspots

Specifications:

Dimensions
437 x 256 x 98 mm (117.19 x 10.08 x 3.82")with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80")

Display Resolution
1920 x 1080

Screen Brightness
1200 nits

Waterproof rating
IPX6 and 7

Ethernet Ports
1 x 5 pin yellow connector x 10/100 Mbit

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Weight
4.65 kg (10.25lbs.)

Supply Voltage
10 - 31.2 V DC

Update rate
10 Hz

Shock Vibration
100 000 cycles of 20 G

Operating Temperature Range
-15°C to 55°C (5° F to 131° F)

Internal Storage
16 GB

SD Card Storage
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS

Video
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
AIS - Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)

Autopilot - Full auto pilot control and commissioning

Cartography included - World basemap

Cartography supported - Insight, Navionics (Gold, NAV Platinum ) , C-MAP (MAX N, MAX N ,Reveal) NV Digital (Raster US Charts)

Digital Switching - C-Zone, Naviop

External Storage - 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS

GPS - Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)

Internal Storage
16 GB

Multimedia
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)

Radar
(inc. compatibility) - Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar

Sonar (inc. compatibility)
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders

Weather
SiriusXM via WM-3 / WM-4 (USA only), GRIB

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Compass Safe Distance
Metric, imperial 50 cm (1.7 ft)

INCLUDED :

Zeus³/3S 16 Sun Cover
Power Cable, 4-Pin
NSS16 evo3/3S & Zeus³/3S 16 Edge Bezels
NSS16 evo3/3S & Zeus³/3S 16 Dash Mount Kit

Also you can check product : B&G Zeus 3S Glass Helm 19" System Pack NEW
