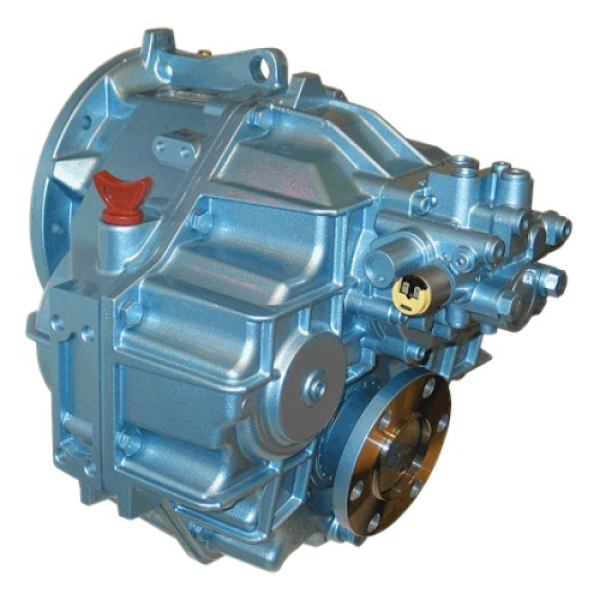

ZF 85A Gearbox Marine Transmission 2.5:1 Hurth HSW800A 80A NEW
Reverse reduction marine transmission with mechanically actuated multi-disc clutches. Suitable for high performance applications in luxury sailboats, motoryachts, fishing boats, etc. Robust design also withstands continuous duty in workboat applications. Fully works tested, reliable and simple to install.Design, manufacture and quality control standards comply with ISO 9001. Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.
$1,685.00
ZF 85A Gearbox Marine Transmission 2.5:1 Hurth HSW800A 80A NEW
ZF 85A Gearbox Marine Transmission 2.0:1 Hurth HSW800A 80A New
Reverse reduction marine transmission with mechanically actuated multi-disc clutches.
Suitable for high performance applications in luxury sailboats, motoryachts, fishing boats, etc.
Robust design also withstands continuous duty in workboat applications.
Fully works tested, reliable and simple to install.
Design, manufacture and quality control standards comply with ISO 9001.
Compatible with all types of engines and propulsion systems, including water jets and surface piercing propellers, as applicable.
Features :
Lightweight and robust aluminum alloy casing (sea water resistant).
Case hardened and precisely ground gear teeth for long life and smooth running.
Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead.
B/W connection integrated with casing.
Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable.
Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode).
Replaceable oil filter cartridge.
Compact, space saving design due to 8° down-angle and beveloid gear principle.
"SUPERSHIFT" clutch control.
Integrated bosses for speed pick-up installation at output flange.
ZF 85 A Options
Engine-matched dual stage coupling.
SAE 2 and SAE 3 bell housings.
Oil cooler complete with fittings and flexible oil hoses.
Mounting brackets.
Propeller shaft flange.
Control cable bracket for mounting of push-pull cable to the control lever.
Classification by all major Classification Societies on request.
SAE «A» Power Take Off.
Thermostatic valve for better performance of trolling valve in cold sea water.
Trolling valve (mechanical) for slow-speed drive.
Electric Trolling.
Supershift (with Autotroll and Easidock)
Specifications :
Brand
ZF
Color
Unpainted
Made In
Italy
Fits
Mechanical Shift
Item Weight
159 lbs
Manufacturer
ZF
Manufacturer #
3323001002
Material
Aluminum
Model
85A
Part #
3323001002
Product Type
Boat Transmission, 8 Degree Down Angle
Replaces
ZF 85A, 80A, Hurth HSW800A
Shipping Dims
30" x 29" x 29"
Shipping Wt
220 lbs
Size
Gear Ratio: 2.5:1
Warranty
2 Year (1 Year Commercial)
