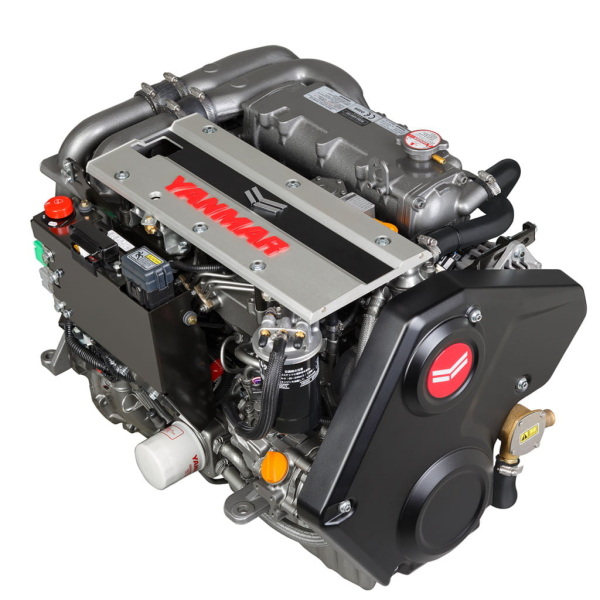

Yanmar 4JH80 80HP Inboard Diesel Engine - New
As of the spring of 2016, the four models in the new 4JH-CR product range are the naturally aspirated 4JH45 (33.1kW) and 4JH57 (41.9kW) and the turbocharged 4JH80 (58.8kW) and 4JH110 (80.9kW). As described in section 3.6 below, all models comply with international exhaust emission regulations such as the Tier 3 regulations of the US Environmental Protection Agency (EPA). The new models also maintain the same engine dimensions as their predecessors, ensuring that the new 4JH-CRs are suitable for users who want to install them as replacements.
$5,100.00
As of the spring of 2016, the four models in the new 4JH-CR product range are the naturally aspirated 4JH45 (33.1kW) and 4JH57 (41.9kW) and the turbocharged 4JH80 (58.8kW) and 4JH110 (80.9kW). As described in section 3.6 below, all models comply with international exhaust emission regulations such as the Tier 3 regulations of the US Environmental Protection Agency (EPA). The new models also maintain the same engine dimensions as their predecessors, ensuring that the new 4JH-CRs are suitable for users who want to install them as replacements.
Specifications :
Rated Output
58.8 kW / 80 mhp
Rated Speed
3200 rpm
Displacement
2 L / 122 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
84 mm x 90 mm / 3.31 in x 3.54 in
Combustion system
Direct Injection, Bosch Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator
12V - 125A
Dry weight without gear
229 kg / 505 lbs
Dimensions
909 mm x 613 mm x 675 mm
Controls
Mechanical (optional - VC10 system)
Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
Packages
Standard Engine Package
Exhaust mixing elbow [L-type]
Alternator 12V – 125A
Seawater pump rear mounted
B25 panel
Flexible mounts
Mechanical throttle sensor
Fuel pre-filter with water separator
Fresh water expansion tank
Belt safety cover
Optional Accessories
High-riser mixing elbow [instead of L-elbow]
Secondary alternator 12V – 125A or 24V – 60A
Seawater pump front mounted
C35 panel
Extension harness [3m, 5m, 10m]
Second station
Sidemount control head
VC10 Vessel Control System
NMEA2000 Engine monitoring system
Semi 2-pole
SOLAS including Certificate [factory fit only]
Opposite dipstick
Hot water kit with cocks
Extension saildrive leg [75 mm]
Propeller cone nut kit SD60
On-board spare parts kit
NOTE :
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
Also you can check product : Yanmar 4JH57 57HP Inboard Diesel Engine - New
Specifications :
Rated Output
58.8 kW / 80 mhp
Rated Speed
3200 rpm
Displacement
2 L / 122 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
84 mm x 90 mm / 3.31 in x 3.54 in
Combustion system
Direct Injection, Bosch Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator
12V - 125A
Dry weight without gear
229 kg / 505 lbs
Dimensions
909 mm x 613 mm x 675 mm
Controls
Mechanical (optional - VC10 system)
Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
Packages
Standard Engine Package
Exhaust mixing elbow [L-type]
Alternator 12V – 125A
Seawater pump rear mounted
B25 panel
Flexible mounts
Mechanical throttle sensor
Fuel pre-filter with water separator
Fresh water expansion tank
Belt safety cover
Optional Accessories
High-riser mixing elbow [instead of L-elbow]
Secondary alternator 12V – 125A or 24V – 60A
Seawater pump front mounted
C35 panel
Extension harness [3m, 5m, 10m]
Second station
Sidemount control head
VC10 Vessel Control System
NMEA2000 Engine monitoring system
Semi 2-pole
SOLAS including Certificate [factory fit only]
Opposite dipstick
Hot water kit with cocks
Extension saildrive leg [75 mm]
Propeller cone nut kit SD60
On-board spare parts kit
NOTE :
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
Also you can check product : Yanmar 4JH57 57HP Inboard Diesel Engine - New
- Availability: 19 In Stock
- Model: 4JH80
-
