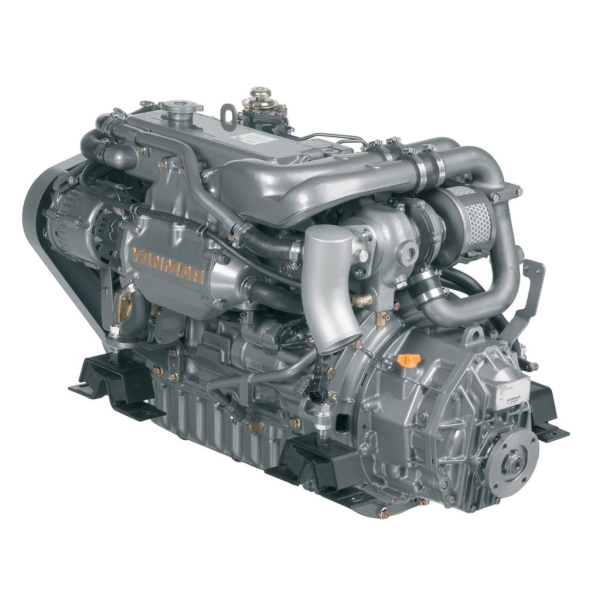

Yanmar 4JH4-HTE 110HP Inboard Diesel Engine - New
Yanmar 4JH4-HTE series marine diesel engine, it is a 4-stroke, vertical, water-cooled diesel engine with 4 cylinders and a displacement of 1.995 L. It produces a maximum output of 80.9 kW at 3200 rpm and a continuous rating of 73.6 kW at 3100 rpm. It has features like a direct injection combustion system, turbocharging, electric starting, and freshwater cooling. The engine is designed for counterclockwise rotation and weighs 217 kg without gear. It meets various environmental standards.
$5,880.00
Yanmar 4JH4-HTE series marine diesel engine, it is a 4-stroke, vertical, water-cooled diesel engine with 4 cylinders and a displacement of 1.995 L. It produces a maximum output of 80.9 kW at 3200 rpm and a continuous rating of 73.6 kW at 3100 rpm. It has features like a direct injection combustion system, turbocharging, electric starting, and freshwater cooling. The engine is designed for counterclockwise rotation and weighs 217 kg without gear. It meets various environmental standards.
Specifications :
Rated Output
80.9 kW / 110 mhp
Rated Speed
3200 rpm
Displacement
1.995 L / 121.7 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
84 mm x 90 mm / 3.31 in x 3.54 in
Combustion system
Direct Injection, Bosch Distributor Type VE Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 125A
Dry weight without gear
217 kg / 478 lbs
Dimensions
933 mm x 661 mm x 659 mm
Controls
Mechanical
Certifications
RCD 1 EPA Tier 2 BSO II EMC SOLAS
Packages
Standard Engine Package :
Exhaust mixing elbow [L-type]
Alternator 12V – 125A
B20 panel
Flexible mounts
Expansion tank for fresh water cooling system
Electric stop solenoid
Optional Accessories :
High-riser mixing elbow [instead of L-elbow]
Secondary alternator 12V – 130A or 24V – 75A including smart regulator
C30 panel
Extension wire harness [4m, 6m, 10m]
Dual harness [for 2nd station]
TFX Sidemount control head
SOLAS including Certificate [factory fit only]
Hot water kit with cocks
Extension saildrive leg [75 mm]
Propeller cone nut kit SD60
Air heater [glow]
Trolling valve [only for KMH4A]
On-board spare parts kit
NOTE :
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
Also you can check product : Yanmar 4JH4-TE 75HP Inboard Diesel Engine - New
Specifications :
Rated Output
80.9 kW / 110 mhp
Rated Speed
3200 rpm
Displacement
1.995 L / 121.7 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
84 mm x 90 mm / 3.31 in x 3.54 in
Combustion system
Direct Injection, Bosch Distributor Type VE Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 125A
Dry weight without gear
217 kg / 478 lbs
Dimensions
933 mm x 661 mm x 659 mm
Controls
Mechanical
Certifications
RCD 1 EPA Tier 2 BSO II EMC SOLAS
Packages
Standard Engine Package :
Exhaust mixing elbow [L-type]
Alternator 12V – 125A
B20 panel
Flexible mounts
Expansion tank for fresh water cooling system
Electric stop solenoid
Optional Accessories :
High-riser mixing elbow [instead of L-elbow]
Secondary alternator 12V – 130A or 24V – 75A including smart regulator
C30 panel
Extension wire harness [4m, 6m, 10m]
Dual harness [for 2nd station]
TFX Sidemount control head
SOLAS including Certificate [factory fit only]
Hot water kit with cocks
Extension saildrive leg [75 mm]
Propeller cone nut kit SD60
Air heater [glow]
Trolling valve [only for KMH4A]
On-board spare parts kit
NOTE :
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
Also you can check product : Yanmar 4JH4-TE 75HP Inboard Diesel Engine - New
- Availability: 21 In Stock
- Model: 4JH4-HTE
-
Brand:
