Raymarine Axiom 2 Pro S 16" Chartplotter/Fishfinders with Lighthouse Chart NEW
Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch-a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom 2 Pro S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.
$2,429.00
Raymarine Axiom 2 Pro S 16" Chartplotter/Fishfinders with Lighthouse Chart NEW
A Trusted Crew Member
When cruising the open ocean, the only thing that’s predictable is the unexpected. But when you have tools that provide ultimate awareness at your side, you’ll be ready for whatever nature throws at you.
Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch-a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom 2 Pro S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.
Power That Pushes the Limits
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.
Ready for All Conditions
Axiom 2 Pro's HydroTough nano-coating technology repels water for reliable touchscreen control, enhanced colors and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Confident Control
Plan and plot your course with HybridTouch control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads that allow you to choose between a dedicated Evolution autopilot keypad or user-programable soft keys.
Advanced Sailing Tools
Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.
Polars and Dynamic Laylines
Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.
Race Like a Pro
Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.
Tactical Advantage
Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.
One Display-Endless Possibilities
Discover More
Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.
Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
Turn Night Into Day
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.
Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.
Smarter Boating
Stay Connected
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

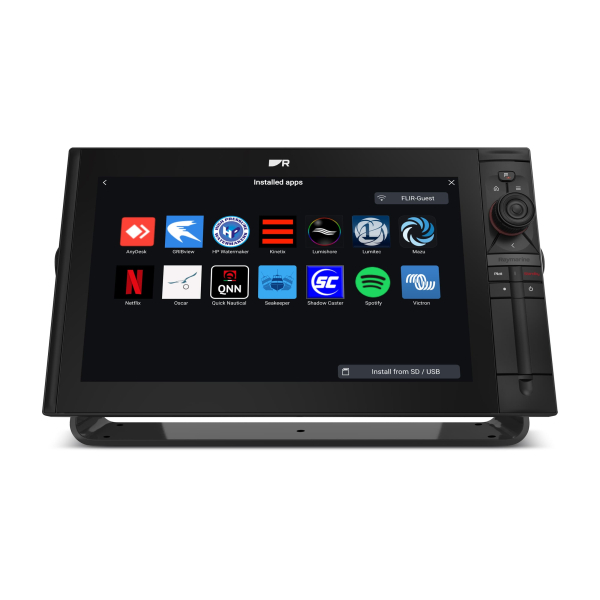

Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.
Create a Powerful Navigation System
Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
Specifications :
Physical
Dimensions (Trunnion mounted)
Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)
Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Connections
Ethernet connection
2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection
DeviceNet connector
Wi-Fi
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth
v4.0
Accessory connection
USB Micro B
Internal storage
64GB Solid State
External storage
2 front mounted MicroSDXC card slots
Digital Video and Audio
HDMI Out Micro connector type D
Analog video connections
BNC Analog video input (on power cable)
Analog audio connections
RCA connectors via power cable
External GPS anternna
TNC connector
Power
Power consumption @ 12 V dc
Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc
Axiom Pro 16: 40.8 W
Operating voltage range
8 V dc to 32 V dc
Nominal supply voltage
12 V dc / 24 V dc
Off current @ 12 V dc
11 mA (0.13 W)
Off current @ 24 V dc
18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)
1
Current
5 A
Fuse rating
15 A
GPS (GNSS)
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels
Track up to 28 satellites simultaneously
Antenna
Internal - Ceramic chip mounted near top of unit
GNSS compatibility
GPS, Galileo, GLONASS, Beidou
Almanac Update
Automatic
Signal Acquisition
Automatic
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency
1574 MHz to 1605 MHz
Refresh rate
10 Hz (10 times per second)
Time to first fix from cold start
< 2 minutes
Environmental
Operating temperature
-25°C to 55°C (-13°F to 131°F)
Storage temperature
-30°C to 70°C (-22°F to 158°F)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
LCD
Size (diagonal)
Axiom 2 Pro 16: 15.6"
Ratio
Axiom 2 Pro 16: 16:10
Resolution
Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle
Top 88° / Bottom 88° / Left 88° / Right 88°
Type
IPS (In-Plane Switching)
Color depth
24-bit
Illumination
Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches
1 to 16
Sonar
Channels
CHIRP conical sonar
Depth range
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
INCLUDED :
Display unit
User Configurable Keypad
Suncover
Gasket
Trunnion knobs (x 2)
Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Mounting fixings x4
Documentation
Power/Video/Audio cable 1.5 m (4.92 ft)
A Trusted Crew Member
When cruising the open ocean, the only thing that’s predictable is the unexpected. But when you have tools that provide ultimate awareness at your side, you’ll be ready for whatever nature throws at you.
Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch-a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom 2 Pro S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.
Power That Pushes the Limits
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.
Ready for All Conditions
Axiom 2 Pro's HydroTough nano-coating technology repels water for reliable touchscreen control, enhanced colors and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Confident Control
Plan and plot your course with HybridTouch control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads that allow you to choose between a dedicated Evolution autopilot keypad or user-programable soft keys.
Advanced Sailing Tools
Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.
Polars and Dynamic Laylines
Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.
Race Like a Pro
Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.
Tactical Advantage
Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.
One Display-Endless Possibilities
Discover More
Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.
Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
Turn Night Into Day
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.
Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.
Smarter Boating
Stay Connected
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.
Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.
Create a Powerful Navigation System
Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
Specifications :
Physical
Dimensions (Trunnion mounted)
Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted)
Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in)
Connections
Ethernet connection
2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection
DeviceNet connector
Wi-Fi
Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth
v4.0
Accessory connection
USB Micro B
Internal storage
64GB Solid State
External storage
2 front mounted MicroSDXC card slots
Digital Video and Audio
HDMI Out Micro connector type D
Analog video connections
BNC Analog video input (on power cable)
Analog audio connections
RCA connectors via power cable
External GPS anternna
TNC connector
Power
Power consumption @ 12 V dc
Axiom Pro 16: 42.36 W
Power consumption @ 24 V dc
Axiom Pro 16: 40.8 W
Operating voltage range
8 V dc to 32 V dc
Nominal supply voltage
12 V dc / 24 V dc
Off current @ 12 V dc
11 mA (0.13 W)
Off current @ 24 V dc
18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number)
1
Current
5 A
Fuse rating
15 A
GPS (GNSS)
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels
Track up to 28 satellites simultaneously
Antenna
Internal - Ceramic chip mounted near top of unit
GNSS compatibility
GPS, Galileo, GLONASS, Beidou
Almanac Update
Automatic
Signal Acquisition
Automatic
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency
1574 MHz to 1605 MHz
Refresh rate
10 Hz (10 times per second)
Time to first fix from cold start
< 2 minutes
Environmental
Operating temperature
-25°C to 55°C (-13°F to 131°F)
Storage temperature
-30°C to 70°C (-22°F to 158°F)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
LCD
Size (diagonal)
Axiom 2 Pro 16: 15.6"
Ratio
Axiom 2 Pro 16: 16:10
Resolution
Axiom 2 Pro 16: 1920 x 1080 FHD
Viewing angle
Top 88° / Bottom 88° / Left 88° / Right 88°
Type
IPS (In-Plane Switching)
Color depth
24-bit
Illumination
Axiom 2 Pro 16 1200 nits / 1200 cd/m2
Number of simultaneous touches
1 to 16
Sonar
Channels
CHIRP conical sonar
Depth range
0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
INCLUDED :
Display unit
User Configurable Keypad
Suncover
Gasket
Trunnion knobs (x 2)
Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
Mounting fixings x4
Documentation
Power/Video/Audio cable 1.5 m (4.92 ft)
- Availability: 119 In Stock
- Model: Axiom 2 Pro S
-
