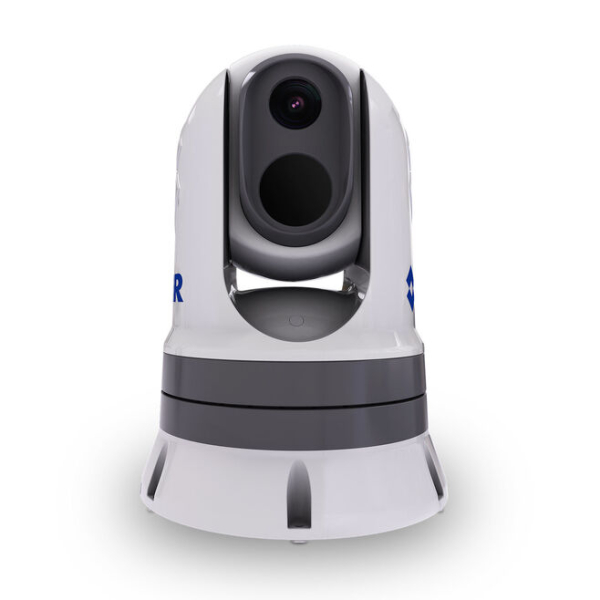

FLIR M364C 30hz High Resolution Marine Thermal Camera NEW
Featuring a high definition ultra-low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C LR provide an elite level of awareness on the water. Both models feature use multispectral FLIR Color Thermal Vision™, the blending of the visible camera with thermal to let mariners use color enhanced imagery to identify navigation aids and other vessels within the thermal scene. This premium advanced maritime system features a high-definition low-light camera and one of the most cutting-edge FLIR thermal imaging cores. The MC36C provides exceptional situational awareness on the water, utilizing multispectral imaging to deliver exclusive FLIR Color Thermal Vision (CTV) technology.
$8,195.00
FLIR M364C 30hz High Resolution Marine Thermal Camera NEW
High resolution marine thermal camera with pan and tilt, 2-axis gyro stabilization and ultra low-light visible sensor.
Multispectral Marine Cameras with Active Gyro-Stabilization
Featuring a high definition ultra-low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C LR provide an elite level of awareness on the water. Both models feature use multispectral FLIR Color Thermal Vision™, the blending of the visible camera with thermal to let mariners use color enhanced imagery to identify navigation aids and other vessels within the thermal scene.
2-Axis Stabilization
Mechanical image stabilization provides a steady view in rough seas.
Color Thermal Vision
Blends the visible camera with a thermal image for positive identification of buoys and other vessels.
Two Camera Payloads
High Resolution Thermal Ultra Low Light Visible Camera.
Elite Awareness with Multispectral Imaging
Thermal imaging detects objects in complete darkness, glare, and light fog
Marine Video Analytics (MVA) object detection technology recognizes and highlights non-water objects like boats, buoys, or floating debris
Color Thermal Vision blends the thermal and low light visible cameras to easily identify color details like navigational lights and navigation aids.
Superior FLIR Thermal and Ultra-Low Light Night Vision
The M364C and M364C LR - our most advanced M300 series cameras
FLIR Boson thermal imaging core combined with HD visible camera
Rugged IPX6 pan and tilt housing is built to withstand the elements
Advanced onboard image processing technology
Analog video, HD-SDI, and two independent IP video stream for expanded integration.
Specifications :
Thermal Camera
Detector Type
640x512 VOx Microbolometer
Video Refresh Rate
30 Hz or <9 Hz
Field of View
M364C - 24 ° x 18 °
Focal Length
M364C - 18mm
Focus
Fixed 12 ft (3m) to infinity
Optical Zoom
N/A
Digital Zoom
4x Continuous
Visible Camera
Detector Type
1/2.8” CMOS
Resolution
Up to 1920 x 1080 @ 30fps
Minimum Illumination
Low Light Setting ON: 0.006 lux / Low Light Setting OFF: 0.1 lux
Optical Zoom
30x
Digital Zoom
12x
Focal Length
129 mm to 4.3 mm
Field of View
63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
System
Gyro Stabilized
Yes. 2-Axis.
Marine Video Analytics (MVA)
Yes
Pan/Tilt Adjustment Range
360° Continuous Pan, /- 90° Tilt
Color Thermal Vision
Yes
Analog Video Output
NTSC/PAL User Settable
Analog Video Connector Types
BNC
Network Video Output
2 HD H.264 Main Streams, 2 H.264 Sub Streams, 1 Live Stream
HD-SDI Lossless Video Output
Yes
Power Requirements
12 to 24 VDC
Power Consumption
41W nominal; 56W w/ heaters
ONVIF
Profile S Conformance
Environmental
Operating Temperature Range
-13 Degree F to 131Degree F (-25°C to 55°C)
Storage Temperature Range
-30 Degree F to 158 Degree F (-30 Degree C to 70 Degree C)
Automatic Window Defrost
Standard at Power-Up
Water Ingress
IPX6
Shock
15g vertical, 9g horizontal
Vibration
IEC60945
Lightning Protection
Near Strike up to 2kV
Salt Mist
IEC60945
EMI
IEC60945
Physical
Weight
Camera: 13.9lbs (6.3kg) / Camera with Top-Down Riser: 14.9lbs (6.8kg)
Size
Camera: 8.7” (222mm) x 12.9” (328mm) / Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm)
Range
Detect a 30-foot Vessel
M364C - 3.2nm (5.92km)
NATO Target 2.3m x 2.3m @50%
M364C - 0.95nm (1.76km)
Detect Human Sized Target
M364C - 0.39nm (725m)
